The DePalSack® solution has been developed for all manufacturers that are required to open and unload a large amount of bags to supply their process.
MODELS
| DEPALSACK® 01 | DEPALSACK® 02 | DEPALSACK® 03 | |
|---|---|---|---|
| Number of different products | 1 | 3 | Unlimited |
| Recipes | Non | Yes | Yes |
| Daily production | 6,200 bags/day | 8,600 bags/day | 8,600 bags/day |
| Annual production | 2 M bags/yr | 3 M bags/yr | 3 M bags/yr |
| Type | Varislit + bag compactor | Minislit + baler | Minislit + baler + chain conveyor |
OPERATING MODE

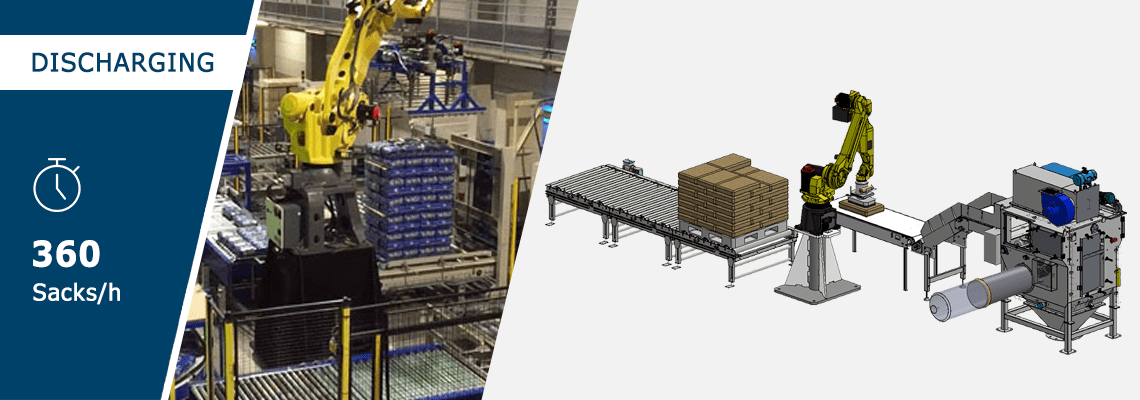

The operator loads the inlet conveyors with pallets of unframed seed bags. It then scans for reference, which is automatically recognized in our supervision program. Robust motorized roller conveyors transport and store pallets safely.
The scanner of the depalletizing robot analyzes and checks the size of the seed bag. The robotic arm picks up the bags one at a time and places them on the feed belt of the automatic bag opening system. The bags are ideally spaced apart to ensure that they open properly. The robot eliminates the risk of error and limits MSDs at the depalletizing station.
The seed bags enter the Minislit® automatic bag opening system where the self-adapting system allows for a wide variation in the size of the feed bags. Its unique bag turning system allows almost complete discharge of the material from the bags. The resulting loss of product is extremely minimal.
Empty bags are automatically discharged via a compaction screw into a high-density PE bag. A monobloc compactor can be adapted at the output to have more waste storage capacity and facilitate recycling of the waste bags.
Empty pallets are automatically evacuated and stacked according to their format.
